Description

The DJI Agras T70P is a high-capacity agricultural drone designed for efficient spraying, spreading and lifting operations. With a 70 L spray tank, 70kg spreading payload and up to 65 kg lifting capacity, the T70P delivers serious productivity while maintaining a more compact platform than the larger Agras T100.

Built for broadacre cropping, horticulture, grazing, orchards and commercial agricultural drone operations, the T70P combines high application rates with DJI’s latest flight control and safety technology.

The standard dual atomisation spraying system delivers up to 30 L/min, while an optional four-sprinkler configuration increases flow to 40 L/min. Adjustable 50–500 μm droplets allow operators to configure droplet size for different application requirements, with an effective spray width of up to 11 metres.

For granular applications, the DJI Spreading System 4.0 provides a 100L hopper with a 70kg operating payload, maximum discharge rate of 400 kg/min and compatibility with materials ranging from 0.5–10 mm depending on the feeder configuration.

The T70P also introduces Safety System 3.0, combining millimetre-wave radar with a Tri-Vision system for obstacle detection, intelligent bypassing and terrain-following operations.

With RTK positioning, ultra-fast battery charging and a maximum operation speed of 20 m/s, the Agras T70P is built for operators who need high daily productivity without stepping up to the size and capacity of the Agras T100.

Key Features

• 70 L spraying tank
• 70 kg spreading payload / 100 L spreading tank
• 65 kg lifting capacity
• 30 L/min standard spray flow
• 40 L/min with optional four-sprinkler system
• 50–500 μm adjustable droplet size
• 4–11 m effective spray width
• Up to 10 m spreading width
• Up to 400 kg/min spreading discharge rate
• Up to 20 m/s operation speed
• RTK positioning
• Safety System 3.0
• Millimetre-wave radar + Tri-Vision system
• Obstacle detection and intelligent bypassing
• Terrain following
• Ultra-fast battery charging
• Compatible with DB1580 and DB2160 Intelligent Flight Batteries

Spraying System

The DJI Agras T70P features a 70 L HDPE spray tank and a high-flow spraying system designed for both field and orchard applications.

Spray Specifications

The centrifugal sprinklers allow operators to adjust droplet size between 50 and 500 microns, making the aircraft adaptable to different crops, application rates and operating conditions.

Optional water-cooled mist sprinklers are available for applications requiring improved canopy penetration. DJI reports droplets as small as 50 μm and improved penetration and underside leaf coverage in suitable applications.

Solenoid valves provide rapid spray start and stop control to help minimise dripping, while electromagnetic flow meters continuously monitor and dynamically control application flow.

DJI Spreading System 4.0

The T70P can be equipped with DJI’s high-capacity spreading system for fertiliser, seed, feed and compatible granular agricultural products.

Spreading Specifications

Multiple feeder options allow the spreading system to be configured for different granular materials.

The standard configuration supports materials including fertiliser, wheat, feed and rice. An optional small feeder supports 0.5–4 mm materials, including compatible granular herbicides and granular insecticides.

The integrated weighing sensor provides real-time remaining-material information and supports automatic flow calibration, helping operators achieve more consistent application rates and reduce unnecessary product waste.

Safety System 3.0

The Agras T70P features DJI’s Safety System 3.0, combining millimetre-wave radar and a Tri-Vision system to assist with obstacle detection and terrain following.

Key capabilities include:

• Horizontal omnidirectional obstacle avoidance
• Intelligent obstacle bypassing
• Terrain-following operations
• Steep terrain following
• AR-enhanced obstacle display
• Automatic obstacle position memory
• Up to 60 m sensing range
• Effective obstacle avoidance at speeds up to 13.8 m/s

The system is designed to give operators greater situational awareness when working around varying terrain, vegetation and field obstacles.

Obstacle avoidance remains an operator-assistance system and does not replace appropriate flight planning, visual observation or safe operating procedures.

Lifting Capability

In addition to spraying and spreading, the Agras T70P supports agricultural lifting and transport applications.

The lifting system incorporates real-time weighing and automatic balance control.

Folded Dimensions

Arms and propellers unfolded:
3200 × 3520 × 960 mm

Arms unfolded / propellers folded:
1820 × 2100 × 960 mm

Arms and propellers folded:
1160 × 900 × 960 mm

The folding design makes the T70P considerably easier to transport between jobs and paddocks than its operating dimensions suggest.

Battery & Charging

The Agras T70P supports both the DB1580 and DB2160 Intelligent Flight Batteries.

When paired with DJI’s charging infrastructure, batteries can be rapidly cycled throughout the working day.

C12000 Smart Charger

• 12,000 W rated output on three-phase 380 V input
• 3,000 W on single-phase 220 V input
• DB1580: approximately 7–8 minutes from 30% to 95%
• DB2160: approximately 8–9 minutes from 30% to 95%
• Over-voltage protection
• Over-charge protection
• Under-voltage protection
• Over-temperature protection

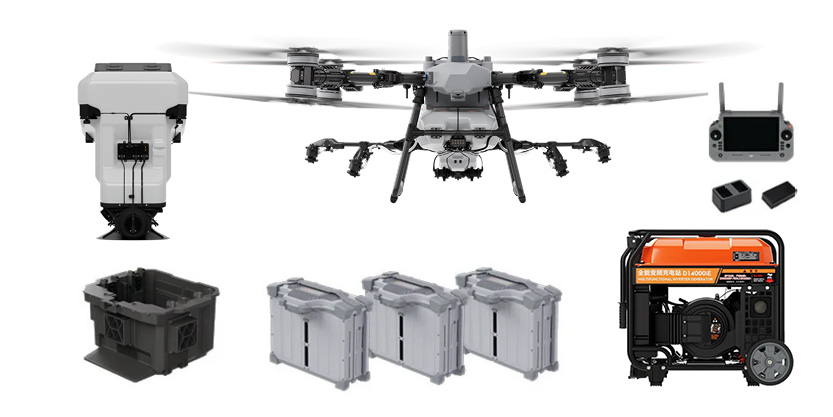

D14000iE Multifunctional Inverter Generator

For field operations, the T70P is compatible with DJI’s D14000iE Multifunctional Inverter Generator.

Approximate charging times are:

• DB1580: 7–8 minutes from 30% to 95%
• DB2160: 8–9 minutes from 30% to 95%

This rapid battery cycling allows commercial operators to maintain continuous operations with an appropriately configured battery and charging setup.
